All-in-One Solar Inverter | 3KW–5KW | 24V to 110V/220V AC | MPPT & Pure Sine Wave
-
Estimated Delivery:Sep 09 - Sep 13
-
Free Shipping & Returns: On all orders over ₦37,000.00
All-in-One Solar Inverter | 3KW–5KW | 24V to 110V/220V AC | MPPT & Pure Sine Wave
|
model
|
UDI012AP
|
UDI512AP
|
UD1524AP
|
UD2024AP
|
UD3024AM
|
UO5048AM
|
UD6348AM
|
U012548AM
|
UD10048AM
|
|
Ac input voltage
|
220VAC(standard)
|
220VAC(standard)
|
|||||||
|
Input voltage range
|
154-264VAC+3V(Nor Model)185-264VAC+3V(UPs model)
110V机型:77-132VAC+3V(Nor Model)92-132VAC±3V(UPs model) |
||||||||
|
Input frequency
|
50/60Hz±5%
|
50/60Hz±5%
|
|||||||
|
Output power
|
1000VA
800W |
1500VA
1200W |
1500VA
1200W |
2000VA
1600W |
3000VA
2400W |
5000VA
4000W |
6300VA
5000W |
10000VA
8000W |
12500VA
10000W |
|
AC model output Voltage
|
The output voltage under the mains is thesame as the input voltage
|
||||||||
|
Battery model output voltage
|
220VAC+10%(Custom110VAC+10%)
|
||||||||
|
Battery model output frequency
|
50HZ or 60HZ±1%
|
||||||||
|
Battery model output wave
|
Pure sine wave
|
||||||||
|
Battery type
|
External lead-acid battery,Gel battery,water battery or Lithium battery
|
||||||||
|
Battery voltage
|
12VDC
|
12VDC
|
24VDC
|
24VDC
|
24VDC
|
48VDC
|
48VDC
|
48VDC
|
48VDC
|
|
Battery charging voltage
|
13.7VDC
|
13.7VDC
|
27.4VDC
|
27.4VDC
|
27.4VDC
|
54.8VDC
|
54.8VDC
|
54.8VDC
|
54.8VDC
|
|
Maximum PV array power
|
12V:800W
|
24V:1600W
|
48V:3200W
|
48V:6400W
|
|||||
|
Solar input voltage range
|
12V:PWM 15V-50VDC
24V:PWM 30V-105VDC |
24V:MPPT 30V-150VDC
48V:MPPT 60V-150VDC |
|||||||
|
Maximum PV Display
Open Circuit Voltage |
12V: PWM 50VDC
24V: PWM 105VDC |
24V:MPPT 150VDC
48V:MPPT 150VDC |
|||||||
|
Maximum solar charging current
|
60A
|
120A
|
|||||||
|
Maximum AC Charge Current
|
27A
|
40A
|
20A
|
30A
|
60A
|
40A
|
50A
|
80A
|
100A
|
|
load peak ratio
|
(MAX)3:1
|
||||||||
|

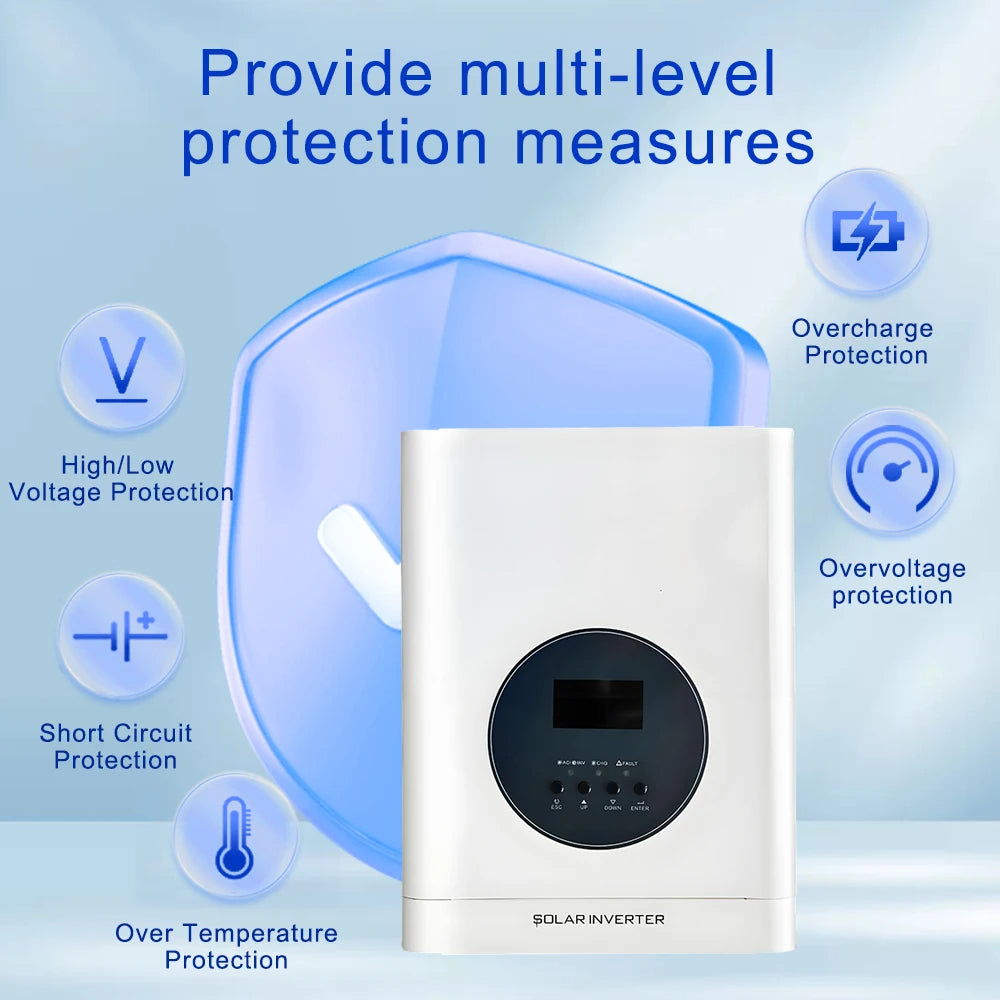

Protective function
|
Under themains:input overcurrent fuse
Under inverter: overload protection,short circuit protection, low voltage protection (with battery anti-reverse connection, board). |
||||||||
|

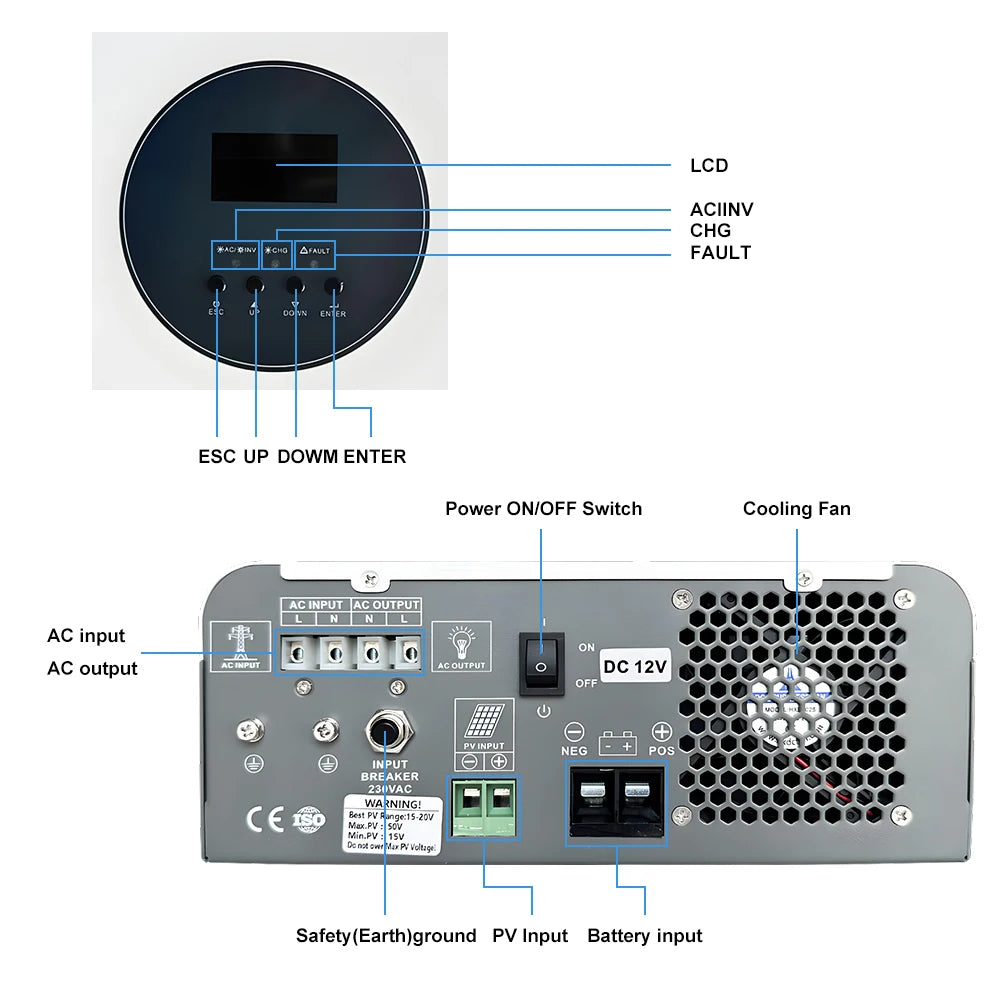

Status Display
|
You can view parameters such as Ac voltage, Ac frequency, PVvoltage, Pv current, output voltage
output frequency, battery voltage, load current and other parameters by turning the page keys. |
||||||||
|
Voice prompt
|
Low batteryprotection ouzzerlona peep
Low batterybuzzer beeps every second Machine fault buzzer beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second,and the output will be turned off after 30s. When the overload is greater than150%.the output will be turned off after 300ms. |
||||||||
|
Operating temperature
|
0°C~40℃
|
||||||||
|
Storage temperature
|
-15°C~45°C
|
||||||||
|
Relative temperature
|
-10°C~90℃C no condensation
|
||||||||
|
Noise
|
<45dB
|
||||||||
|
size(L*W*H)mm
|
465*310*135MM
|
545*400*200MM
|
|||||||
