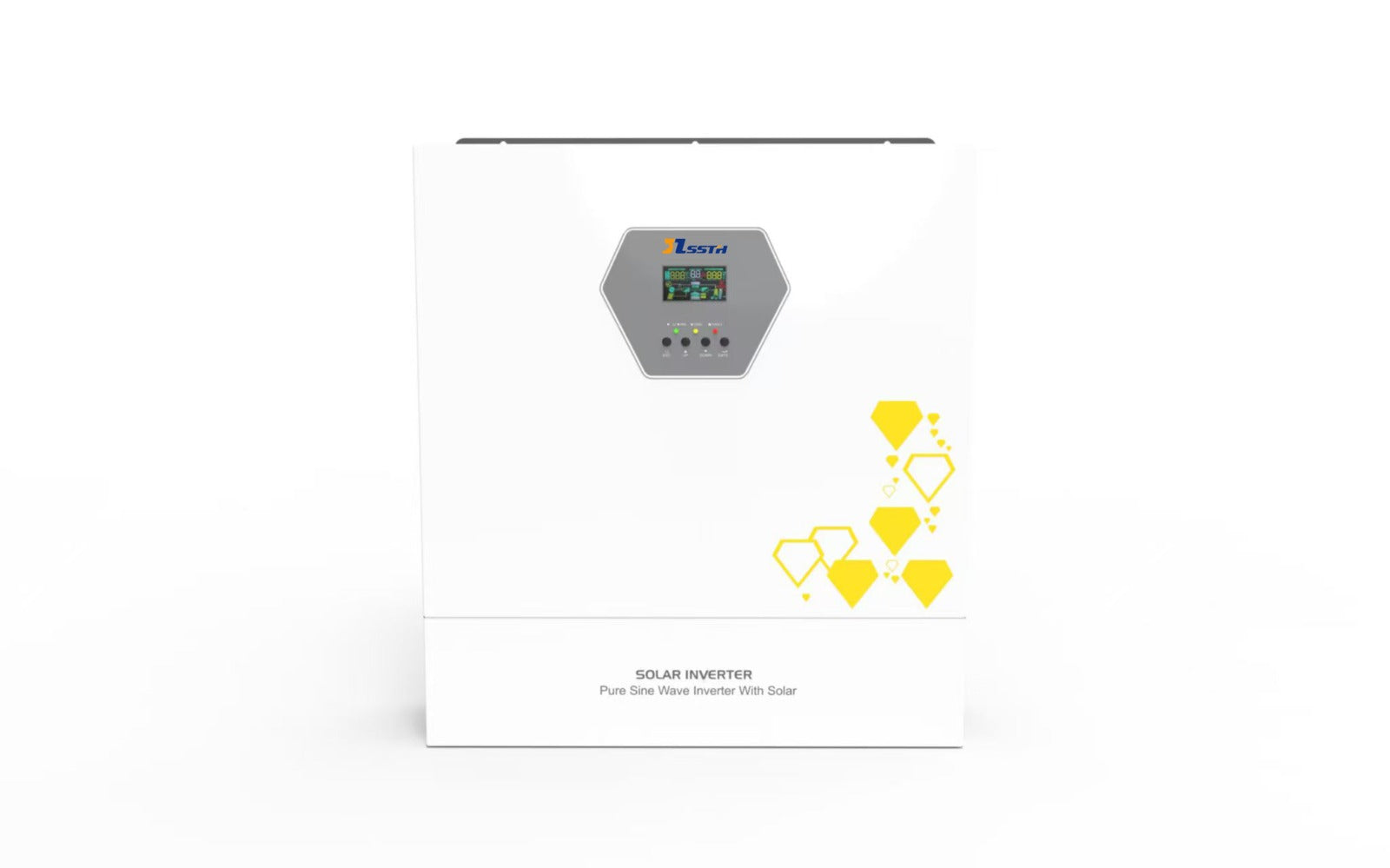

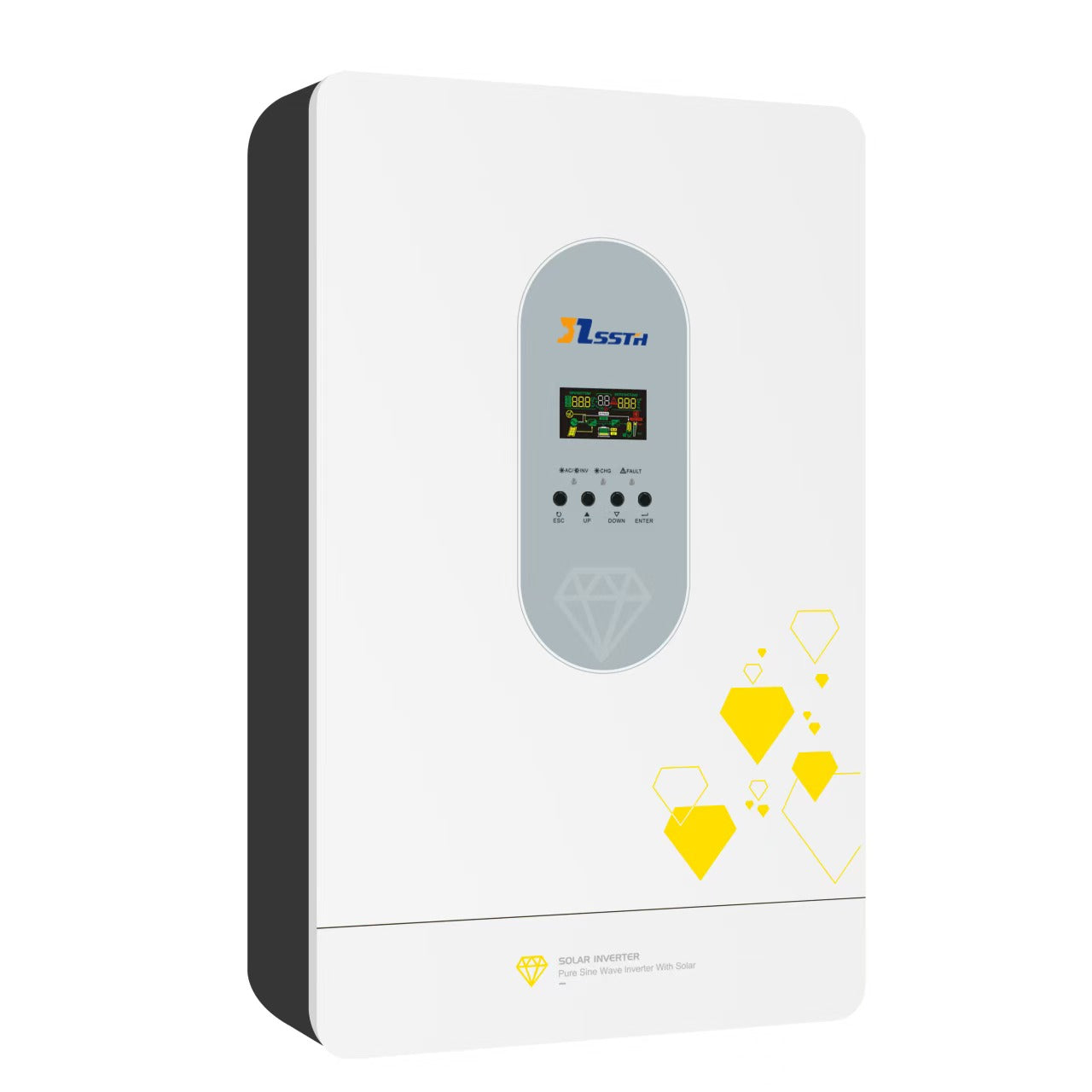

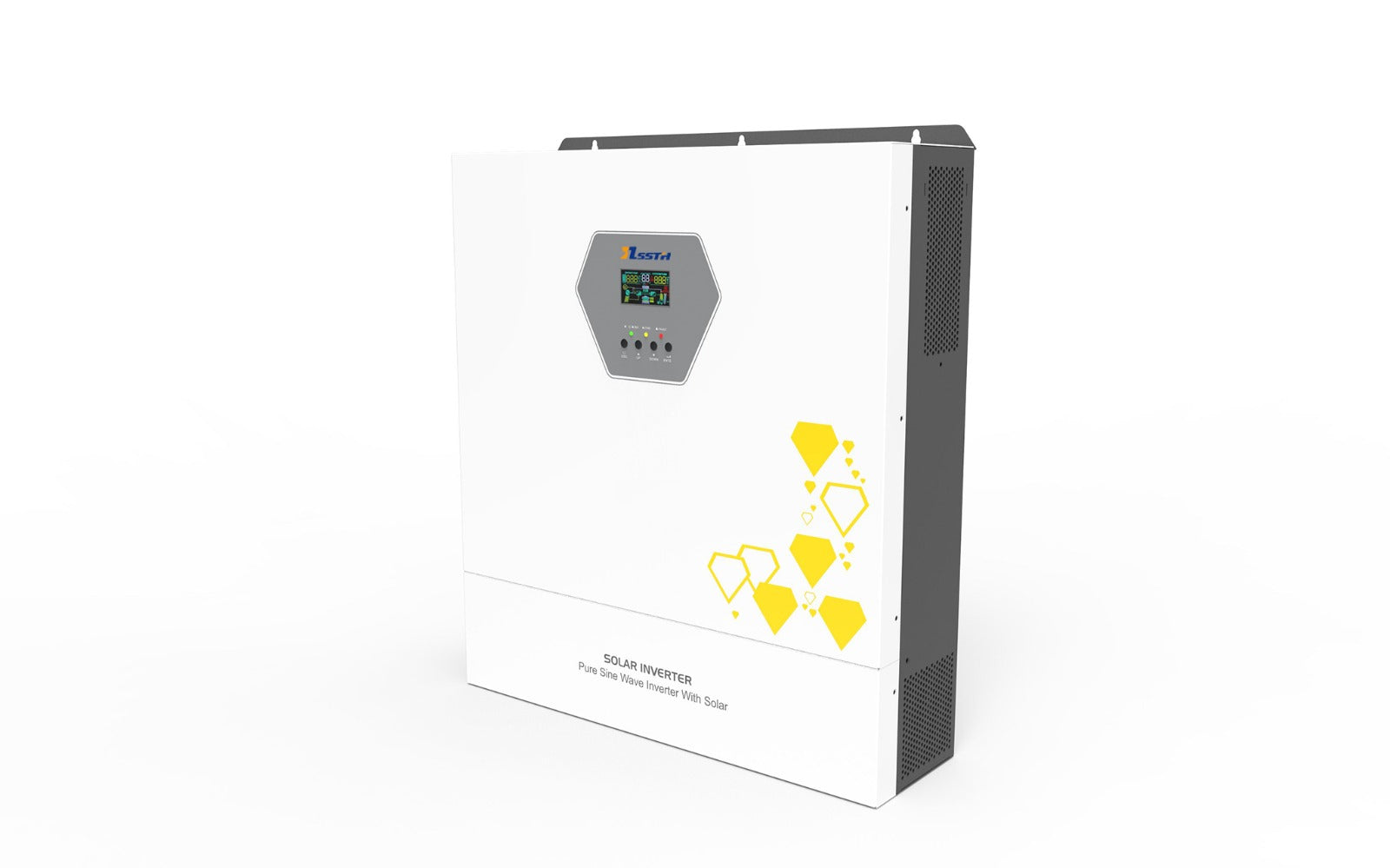

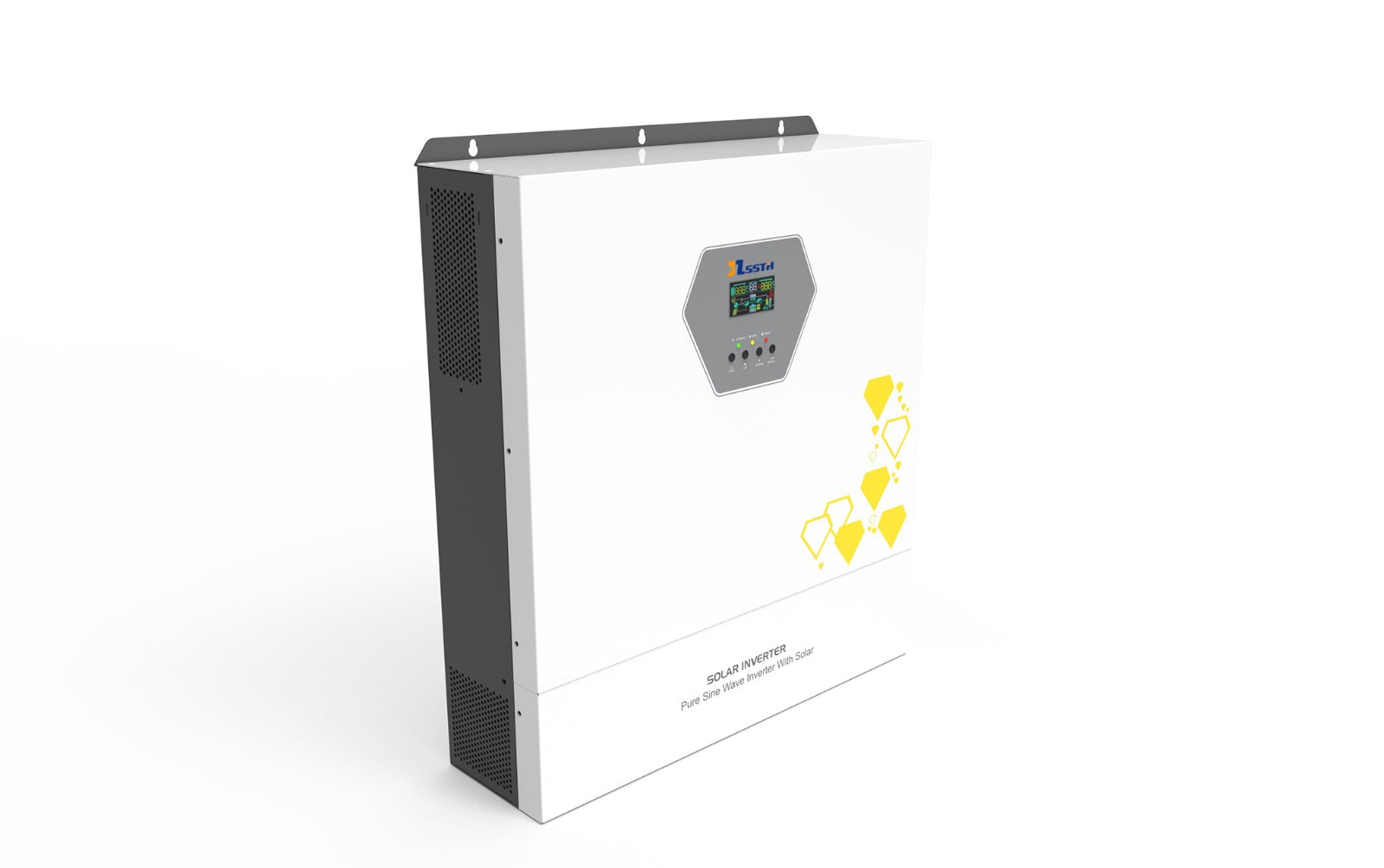

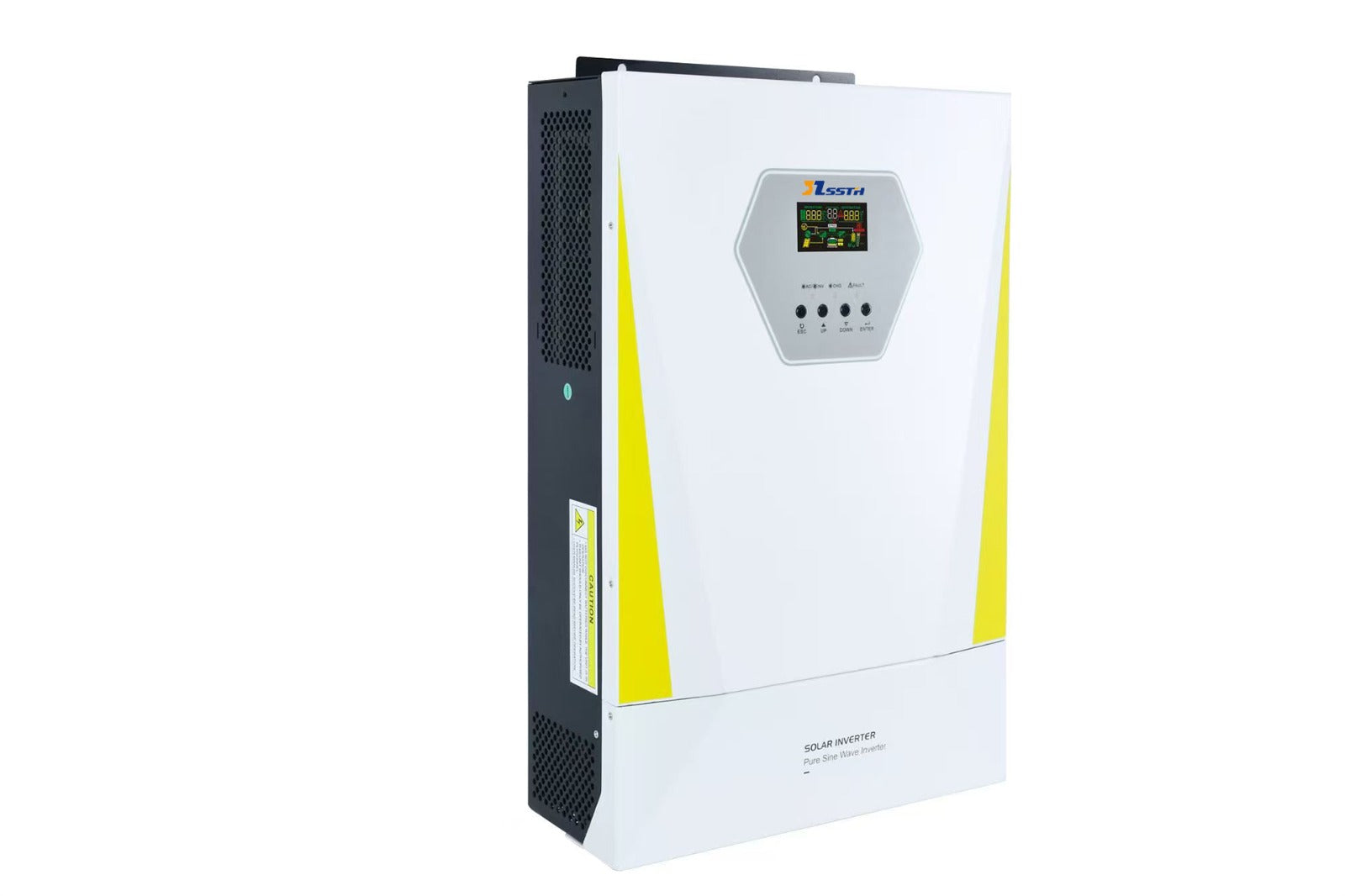

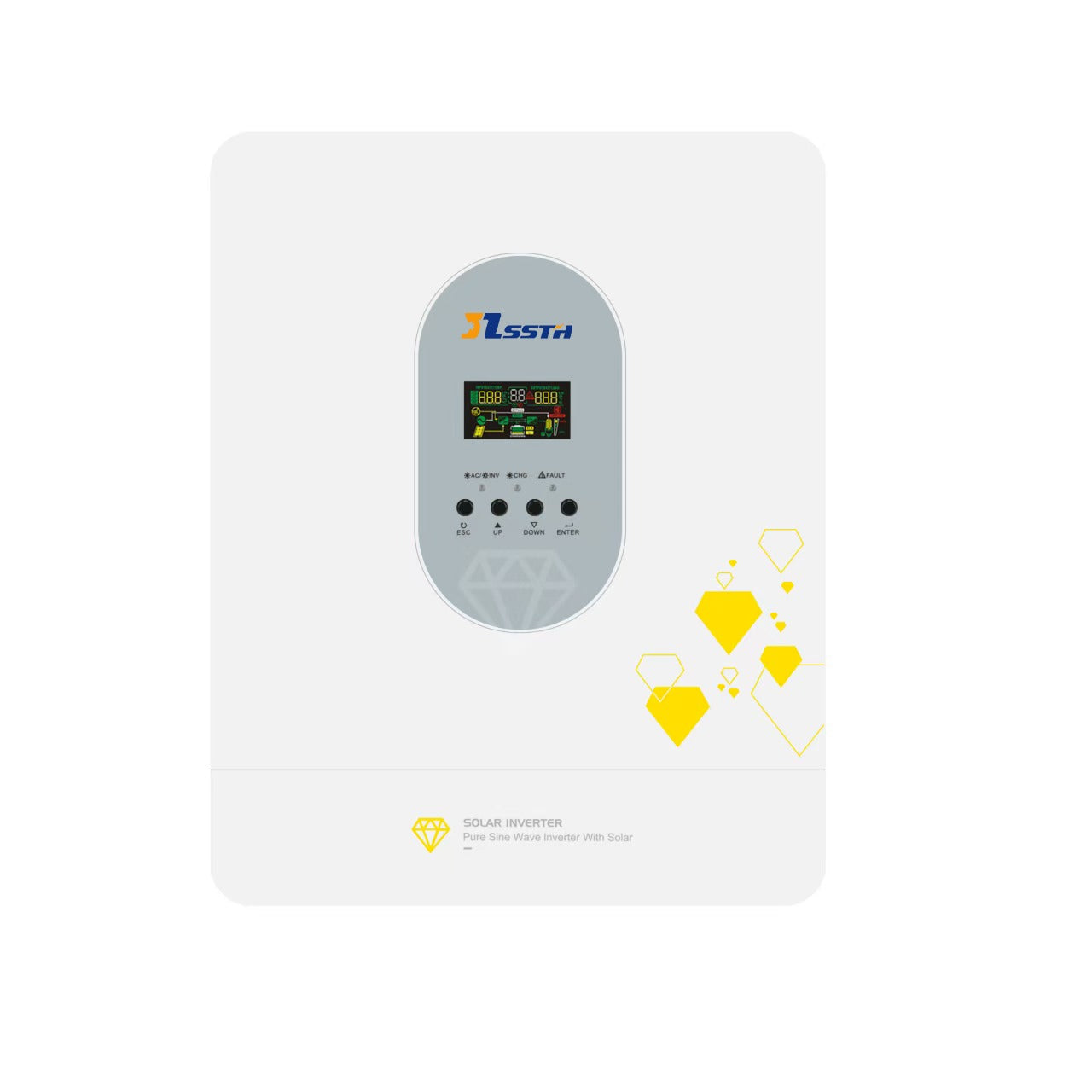

All-in-One Hybrid Solar Inverter | 12V/24V DC to 220V AC | 1KW–6.2KW | MPPT Controller
-
Estimated Delivery:Sep 09 - Sep 13
-
Free Shipping & Returns: On all orders over ₦37,000.00
All-in-One Hybrid Solar Inverter | 12V/24V DC to 220V AC | 1KW–6.2KW | MPPT Controller
|
Model
|
VICTOR NMS-1000-12
|
VICTOR NMS-1500-24
|
|
RATED POWER
|
1000W/1000VA
|
1500W/1500VA
|
|
AC Input
|
|
|
|
Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170~280VAC(For Personal Computers)
|
|
|
90~280VAC(For Home Appliances)
|
||
|
Frequency Range
|
50Hz/60Hz(Autosensing)
|
|
|
AC OUTPUT
|
||
|
AC Voltage Regulation
|
230VAC±5%
|
|
|
Surge Power
|
2000VA
|
3000VA
|
|
Efficiency(Peak) PV to IN V
|
98%
|
|
|
Efficiency(Peak) Battery to IN V
|
94%
|
|
|
Transfer Time
|
10ms
|
|
|
BATTERY
|
|
|
|
Battery Voltage
|
12VDC
|
24VDC
|
|
Floating Charge Voltage
|
13.5VDC
|
27VDC
|
|
Overcharge Protection
|
16VDC
|
32VDC
|
|
SOLAR CHARGER&AC CHARGER
|
|
|
|
Solar Charger Type
|
MPPT
|
|
|
Maximum PV Array Power
|
600W
|
1200W
|
|
MPPT Range@Operating Voltage
|
20~150VDC
|
30-150VDC
|
|
Maximum PV Array Open Circuit
Voltage solar |
150VDC
|
|
|
Maximum Solar Charging Current
|
40A
|
|
|
Maximum AC Charging Current
|
40A
|
|
|
Maximum Solar+AC Charging
Current |
80A
|
|
|
PHYSICAL
|
|
|
|
Dimension， D*W*H(mm)
|
290*240*91
|
|
|
Cartoon Dimension， D“W*H(mm)
|
340*295*145
|
|
|
Net Weight(kgs)
|
3.5
|
3.6
|
|
Gross Weight(kgs}
|
4.0
|
4.2
|
|
ENVIRONMENT
|
|
|
|
Humidity
|
5%to 95%Relative Humidity(Non-condensing)
|
|
|
Operating Temperature
|
-10℃-50℃
|
|
|
STANDARD
|
|
|
|
Compliance Safety
|
CE
|
|
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
Why Alunat?
Discover more in our FAQ
1. How does Alunat’s solar charging technology work?
Our solar products (like portable chargers and inverters) convert sunlight into usable energy through high-efficiency photovoltaic cells. They store power in built-in batteries, so you can charge devices even when the sun isn’t shining—perfect for areas with unreliable electricity (like during NEPA outages).
2. What devices are compatible with the Solar Power Bank?
It works with all USB-powered devices (phones, tablets, Bluetooth earphones, etc.) and includes multiple ports (USB-A/USB-C). Output: 5V/2.4A max per port.
3. Can I charge devices while the Power Bank is solar charging?
Yes! Our Power Bank supports simultaneous charging and discharging, so you can charge your phone or other devices while it gathers solar energy.
4. How do I maintain my Alunat solar device for longevity?
- Keep solar panels clean and free of dust.
- Avoid water exposure (unless waterproof-rated).
- Store in a cool, dry place when not in use.
For knitwear, hand wash in cold water and air dry to preserve fabric quality.
