Description
Product Features
1. Pure sine wave solarinverter
2. Built-in40AMPPT solar charger
3. PVinput voltage range 20~150VDC (for 1000W),30~150VDC(for 1500W)
4. Built-in anti-dust kit for harsh environment
5. Smart battery charge design to optimize battery lifemeet rich customizeddemands

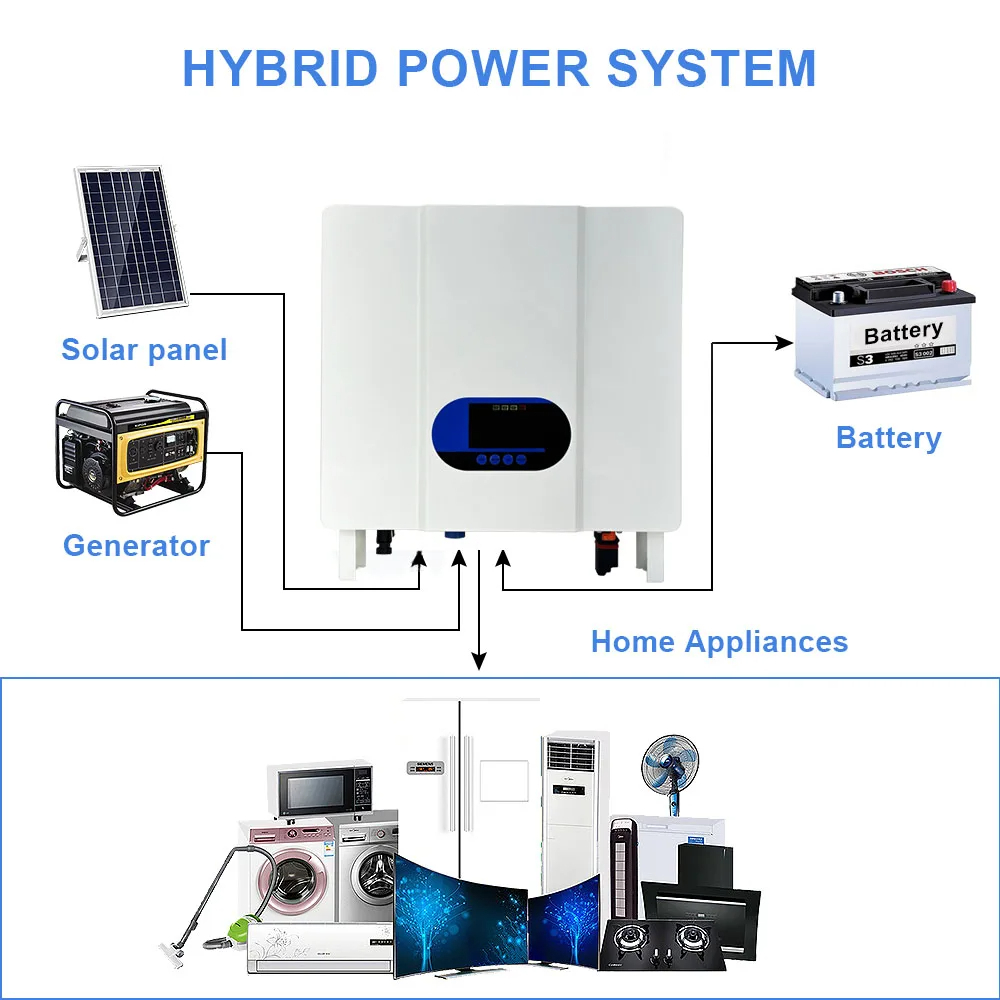

6. Solar energy is provided directly to the load first
|

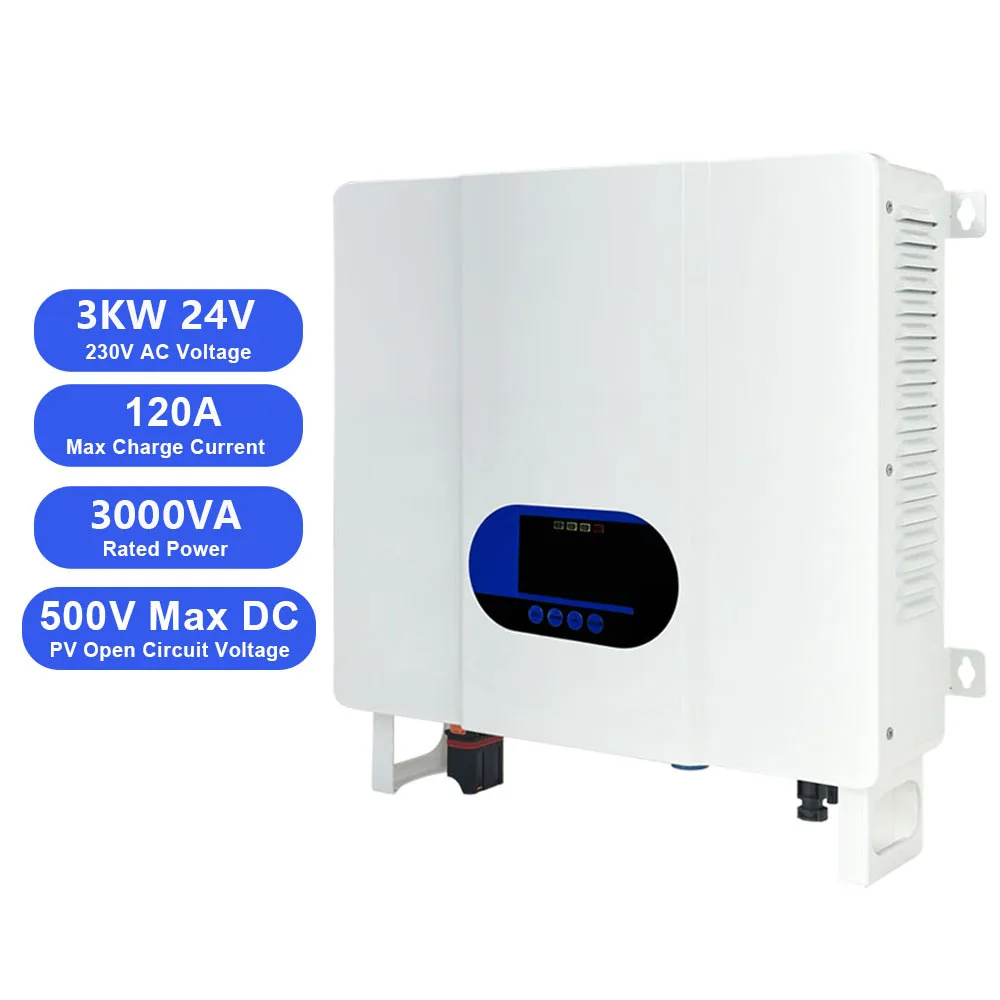

SUF3000S4A1
|
SUF5000S4A1
|
|
|
BatteyInput
|
||
|
Battery Type
|
Li-lon/Lead-acid
|
Li-lon/Lead-acid
|
|
BatteryVoltage
|
24Vdc
|
48Vdc
|
|
Inverter Output
|
||
|
Nominal Power(W)
|
3000
|
5000
|
|
Nominal Apparent Power (VA)
|
3000
|
5000
|
|
Paralll Capacity
|
No
|
Yes.9 units maximum
|
|
AC Voltage Regulation (Battery Mode)
|
230Vac±5%@50/60Hz
|
230Vac±5%@50/60Hz
|
|
Surge Power (VA)
|
6000
|
10000
|
|
Eficiency (peak)
|
93%
|
93%
|
|
Waveform
|
Pure sine wave
|
Pure sine wave
|
|
Transfer Time
|
10ms (for personal computers), 15ms (for home appliances)
|
|
|
SolerCharge
|
||
|
Max.PV Array Power (W)
|
4000
|
6000
|
|
MPPT Range @OperatingVoltage
|
120Vdc-430Vdc
|
120Vdc-430Vdc
|
|
Number of Independent MPP Trackers
|
1
|
1
|
|
Number of Strings Per MPPT
|
1
|
1
|
|
Max,Input Current Per MPPT(A)
|
16
|
18
|
|
Max.PV Array Open Circuit Voltage (V)
|
500Vdc
|
500Vd
|
|
Max Solar Charge Current (A)
|
120
|
80
|
|
Ac Charger
|
||
|
Max.AC Charge Current(A)
|
120
|
80
|
|
AC Input Voltage (V)
|
230Vac
|
230Vac
|
|
Voltage Range (V)
|
170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)
|
|
|
Frequency Range(Hz)
|
50/60
|
50/60
|
|
General
|
||
|
UserInterface
|
APP+LCD Display+LED
|
|
|
Communication
|
USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact
|
|
|
Ingress Protection Rating
|
IP54
|
IP54
|
|
Dimension (W*H*D mm)
|
300*450*110.5
|
300*450*110.5
|
|
Weight (kg)
|
7.5 8
|
|
|
Relative Humidity
|
20%~95%
|
20%~95%
|
|
Max.Operating Altitude (m)
|
2000m, >1000m derating
|
2000m,>1000m derating
|
|
Operating Temperature (°C)
|
0~50
|
0~50
|
|
Storage Temperature (°C)
|
[-15~60]
|
[-15~60]
|
|
Protection
|
||
|
PV Over VoltageProtection
|
Yes
|
|
|
PV Over Current Protection
|
Yes
|
|
|
Battery Over Voltage Protection
|
Yes
|
|
|
Battery Over Current Protection
|
Yes
|
|
|
AC Surge Protection
|
Type II
|
|
|
Output OverCurrentProtection
|
Yes
|
|
|
Output Short Circuit Protection
|
Yes
|
|
|
Output OverVoltage Protection
|
Yes
|
|
